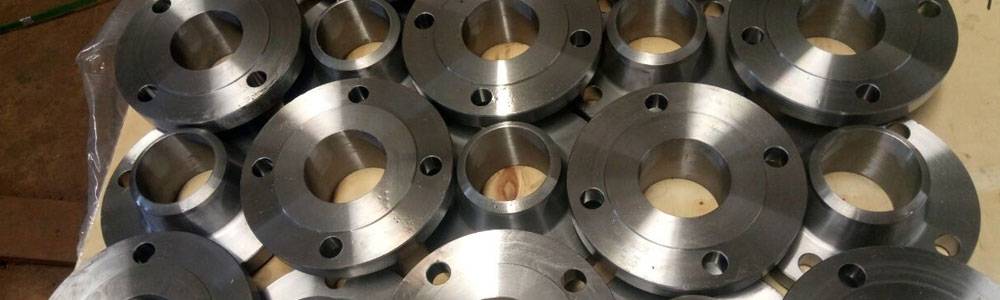

ASTM A182 F11 steel flanges are manufactured from chromium-molybdenum alloy steel and are intended for high-temperature and high-pressure applications. These flanges are widely used in power plants, oil refineries, petrochemical units, and process industries. The alloying elements provide excellent strength and oxidation resistance. ASTM A182 F11 flanges are produced through a forging process that ensures high structural integrity. Forged construction improves grain flow and mechanical reliability. These flanges are suitable for severe service conditions. They offer consistent performance over long operational periods. Compliance with ASTM standards ensures dependable quality.
The chemical composition of ASTM A182 F11 steel flanges is carefully controlled to meet demanding service requirements. Chromium enhances corrosion and oxidation resistance at elevated temperatures. Molybdenum increases tensile strength and creep resistance. Carbon content is maintained to balance hardness and weldability. Manganese and silicon improve deoxidation and strength. Phosphorus and sulfur are kept to minimal limits. This precise composition ensures durability in harsh environments. The alloy structure supports stable performance under thermal stress.
ASTM A182 F11 flanges exhibit excellent mechanical properties required for critical piping systems. They provide high tensile and yield strength compared to carbon steel flanges. These properties allow the flanges to withstand high internal pressures. Elongation and reduction of area values ensure adequate ductility. Proper mechanical strength prevents deformation during service. These flanges maintain integrity during thermal expansion cycles. Their strength contributes to leak-free flange joints. Mechanical reliability is essential in safety-critical installations.
Heat treatment plays a vital role in achieving the desired properties of ASTM A182 F11 steel flanges. The material is typically supplied in normalized and tempered condition. Heat treatment refines the grain structure and improves toughness. It also reduces residual stresses formed during forging. Proper heat treatment enhances resistance to cracking. This process ensures uniform mechanical properties throughout the flange. Heat-treated F11 flanges perform reliably at high temperatures. Compliance with heat treatment requirements is mandatory under ASTM specifications.
ASTM A182 F11 steel flanges are available in a wide range of sizes and pressure classes. Standard pressure ratings include ASME Class 150, 300, 600, 900, 1500, and 2500. These flanges are produced in sizes ranging from small bore to large diameters. Dimensional accuracy is maintained as per ASME B16.5 and ASME B16.47. Custom sizes and special dimensions can be manufactured upon request. Accurate dimensions ensure proper fit-up during installation. This versatility supports diverse piping requirements. Standardized dimensions improve interchangeability.
Various flange types are manufactured using ASTM A182 F11 material. Common types include weld neck, slip-on, socket weld, threaded, and blind flanges. Weld neck flanges are preferred for high-pressure and high-temperature services. Slip-on flanges provide ease of installation and cost efficiency. Socket weld flanges are suitable for small diameter pipelines. Threaded flanges are used where welding is not permitted. Blind flanges are used to isolate or terminate pipelines. Each type meets specific operational needs.
| Specification – ASTM A182 F11 Steel Flanges | |
|---|---|
| Standard | ASTM A182 / ASME SA182 |
| Grade | F11 |
| Material Type | Chromium Molybdenum Alloy Steel |
| UNS Number | K11572 |
| Manufacturing Process | Forged |
| Product Forms | Weld Neck, Slip-On, Socket Weld, Threaded, Blind, Lap Joint |
| Size Range | ½″ to 48″ (Custom sizes available) |
| Pressure Class | ASME Class 150, 300, 600, 900, 1500, 2500 |
| Dimensional Standards | ASME B16.5, ASME B16.47 Series A & B |
| Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Heat Treatment | Normalized and Tempered |
| Testing | Chemical Analysis, Mechanical Testing, Hardness, NDT (if required) |
| Certification | Mill Test Certificate as per EN 10204 3.1 |
| Application | High Temperature & High Pressure Services |
ASTM A182 F11 flanges offer excellent resistance to oxidation and corrosion in elevated temperature environments. Chromium content forms a protective oxide layer on the surface. This layer minimizes scaling and metal loss during service. Molybdenum improves resistance to localized corrosion. These properties make F11 flanges suitable for steam and hydrocarbon services. They perform well in aggressive industrial environments. Corrosion resistance reduces maintenance requirements. This results in extended service life.
Weldability is an important consideration for ASTM A182 F11 steel flanges. Proper welding procedures are required due to the alloy composition. Preheating is recommended to reduce thermal stress during welding. Post-weld heat treatment may be required for certain applications. Using compatible filler metals ensures sound weld joints. Controlled welding practices prevent cracking and distortion. When welded correctly, F11 flanges provide strong and durable joints. This ensures system reliability and safety.
ASTM A182 F11 steel flanges are extensively used in power generation industries. They are commonly installed in boiler systems, steam pipelines, and turbines. Oil refineries use these flanges for high-temperature process lines. Petrochemical plants rely on F11 flanges for pressure vessels and reactors. They are also used in heat exchangers and condensers. Their strength makes them suitable for offshore and onshore installations. Chemical processing plants benefit from their durability. Wide application highlights their versatility.
| Chemical Composition – ASTM A182 F11 Steel Flanges | |
|---|---|
| Element | Percentage (%) |
| Carbon (C) | 0.05 – 0.15 |
| Manganese (Mn) | 0.30 – 0.60 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.040 max |
| Silicon (Si) | 0.50 – 1.00 |
| Chromium (Cr) | 1.00 – 1.50 |
| Molybdenum (Mo) | 0.44 – 0.65 |
| Nickel (Ni) | 0.40 max |
| Iron (Fe) | Balance |
| Mechanical Properties – ASTM A182 F11 Steel Flanges | |
|---|---|
| Tensile Strength | 415 MPa min (60 ksi min) |
| Yield Strength (0.2% Offset) | 205 MPa min (30 ksi min) |
| Elongation | 20% min |
| Reduction of Area | 30% min |
| Hardness | 217 HB max |
| Impact Test | As per ASTM A182 (if specified) |
| Heat Treatment Condition | Normalized and Tempered |
| Testing Temperature | Room Temperature |
| Dimension Chart – ASTM A182 F11 Steel Flanges (ASME B16.5) | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | Bolt Circle Diameter (BCD) | Flange Thickness (T) | Raised Face Height (RF) | Number of Bolt Holes | Bolt Hole Diameter | Pressure Class |
| 1/2" | 89 mm | 60 mm | 11 mm | 1.6 mm | 4 | 15 mm | 150 |
| 1" | 108 mm | 79 mm | 13 mm | 1.6 mm | 4 | 16 mm | 150 |
| 2" | 152 mm | 121 mm | 16 mm | 1.6 mm | 4 | 19 mm | 150 |
| 3" | 191 mm | 152 mm | 19 mm | 1.6 mm | 4 | 19 mm | 150 |
| 4" | 229 mm | 190 mm | 24 mm | 1.6 mm | 8 | 19 mm | 150 |
| 6" | 279 mm | 241 mm | 25 mm | 1.6 mm | 8 | 22 mm | 150 |
| 8" | 343 mm | 298 mm | 28 mm | 1.6 mm | 8 | 22 mm | 150 |
| 10" | 406 mm | 362 mm | 30 mm | 1.6 mm | 12 | 25 mm | 150 |
| Equivalent Grades – ASTM A182 F11 Steel Flanges | |
|---|---|
| Standard | Equivalent Grade |
| ASTM / ASME | ASTM A182 F11 / ASME SA182 F11 |
| UNS | K11572 |
| EN (European) | EN 10222-2 16Mo3 |
| DIN | DIN 1.7335 |
| BS | BS 1503-620 |
| JIS | JIS G3458 SCM415 |
| AFNOR | NF A32-070 15CDMo5 |
| GB (China) | GB 3077 15CrMo |
ASTM A182 F11 Steel Flanges are high-strength chromium-molybdenum alloy steel flanges designed for high-pressure and high-temperature applications. They are widely used in power plants, chemical, petrochemical, and oil & gas industries due to their durability and resistance to heat and corrosion.
This standard includes weld neck, slip-on, socket weld, threaded, lap joint, blind, and reducing flanges. Each type is designed for specific piping configurations, ensuring proper connection, pressure handling, and system reliability.
ASTM A182 F11 flanges are made of chromium-molybdenum steel containing carbon, manganese, phosphorus, sulfur, silicon, chromium, and molybdenum. This composition provides high strength, excellent heat resistance, and moderate corrosion resistance for industrial service.
These flanges provide high tensile strength, yield strength, hardness, and toughness. They are capable of withstanding high pressures and temperatures, making them suitable for critical applications in refineries, power plants, and chemical processing facilities.
Yes, ASTM A182 F11 flanges are suitable for welding. Proper welding procedures, including preheating and post-weld heat treatment, are recommended to prevent cracking and maintain structural integrity in high-temperature applications.
ASTM A182 F11 flanges are available in pressure classes including 150#, 300#, 600#, 900#, 1500#, and 2500#, in accordance with ASME B16.5 standards. Selection depends on the operating pressure and temperature requirements of the piping system.
These flanges are available in sizes ranging from ½ inch to 48 inches, suitable for small to large industrial piping systems, including high-pressure pipelines in power and chemical plants.
ASTM A182 F11 flanges provide moderate corrosion resistance due to their chromium-molybdenum composition. For highly corrosive media, protective coatings or alternative alloy materials may be required to ensure long service life.
These flanges undergo hydrostatic testing, dimensional inspections, radiographic and ultrasonic testing, and hardness checks. This ensures compliance with ASTM and ASME standards, guaranteeing safety and reliability under high-pressure service.
Industries such as power generation, oil & gas, petrochemical, chemical processing, and shipbuilding use ASTM A182 F11 flanges for high-pressure and high-temperature piping systems due to their strength, heat resistance, and reliability in critical applications.
