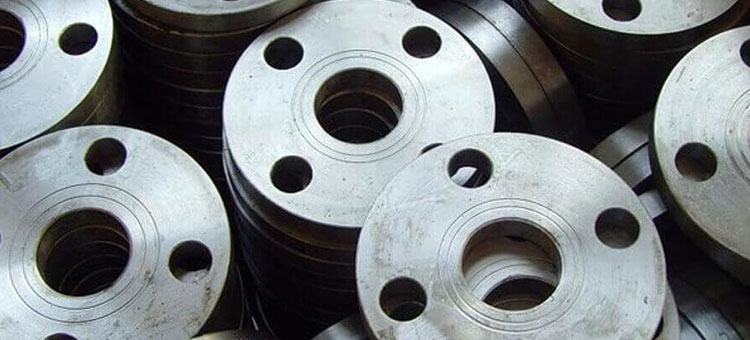

ASTM A182 F5 steel flanges are alloy steel flanges designed for use in high-pressure and high-temperature industrial applications. They are made from chromium-molybdenum steel, which provides excellent resistance to oxidation and corrosion. The F5 grade is ideal for environments where both strength and durability are critical. These flanges are manufactured using a precise forging process that ensures uniform mechanical properties. Available in multiple types such as weld neck, slip-on, blind, and socket weld, they fit a wide range of piping systems. ASTM A182 F5 flanges meet strict quality standards and industry specifications. They are widely used in petrochemical plants, refineries, and power plants. Their reliability makes them essential in critical fluid transport systems.
The alloy steel composition of ASTM A182 F5 flanges makes them suitable for high-temperature service. Chromium and molybdenum provide strength, toughness, and creep resistance under thermal stress. F5 steel flanges perform reliably in both steam and hot fluid applications. The flanges are available in different pressure ratings, ensuring compatibility with diverse piping designs. Their precision forging process eliminates internal defects and enhances durability. These flanges can withstand repeated thermal cycling without compromising performance. Proper heat treatment further improves mechanical properties. Engineers trust them for consistent operation in critical systems.
Weld neck flanges of ASTM A182 F5 are designed for butt-welding to pipes, providing high-strength connections. The tapered hub allows for smooth stress distribution, reducing the risk of failure. Slip-on flanges are easier to install and align, making them suitable for less critical applications. Blind flanges provide a secure method to close pipe ends and allow access for inspection or maintenance. Socket weld flanges are ideal for small-diameter, high-pressure lines. ASTM A182 F5 flanges are compatible with standard pipe schedules. Their dimensional accuracy ensures tight fits and leak-proof connections. These features enhance the efficiency and safety of piping systems.
ASTM A182 F5 flanges are extensively used in oil and gas industries. They handle high-pressure pipelines transporting crude oil, natural gas, and refined products. The alloy steel resists scaling and pitting from corrosive fluids. Flanges are suitable for onshore and offshore applications, withstanding harsh environmental conditions. Their robust construction ensures minimal maintenance over long service life. F5 flanges are compatible with both carbon steel and stainless steel pipelines. Industry-standard threading and welding compatibility make them versatile. This makes them a cost-effective solution for critical pipeline networks.
Power generation plants rely on ASTM A182 F5 flanges for high-pressure steam and water systems. These flanges maintain structural integrity even at elevated temperatures. Their mechanical properties prevent deformation under heavy loads and vibration. The chromium-molybdenum alloy enhances creep resistance and toughness. F5 flanges provide reliable connections for boilers, turbines, and heat exchangers. Proper inspection and testing ensure compliance with ASTM and ASME standards. Their long-term performance reduces downtime and maintenance costs. These flanges are critical to safe and efficient energy production.
Refineries and petrochemical industries use ASTM A182 F5 flanges in hydrocarbon processing pipelines. The flanges resist corrosion from chemical exposure and high-temperature fluids. Forged flanges reduce the risk of cracks and leakage under stress. Weld neck and slip-on variants allow flexibility in system design. ASTM A182 F5 flanges support efficient fluid transfer while maintaining system safety. Heat treatment enhances toughness and ensures uniform properties. These flanges meet international quality standards for industrial piping. Their durability improves plant reliability and reduces operational risk.
| Specification – ASTM A182 F5 Steel Flanges | |
|---|---|
| Standard | ASTM A182 / ASME SA182 |
| Grade | F5 |
| Material Type | Alloy Steel (Chromium-Molybdenum) |
| Manufacturing Process | Forged |
| Product Type | Flanges – Weld Neck, Slip-On, Blind, Socket Weld, Threaded |
| Pressure Class | 150, 300, 600, 900, 1500, 2500 lbs |
| Size Range | 1/2" to 48" NPS |
| Heat Treatment | Annealed / Normalized & Tempered |
| Applicable Standards | ASME B16.5, ASME B16.47, MSS SP-44, ASTM A182 |
| Testing | Chemical Analysis, Mechanical Testing, Hardness Test, NDT (if required) |
| Surface Finish | Black, Polished, Zinc Plated, Hot Dip Galvanized |
| Applications | Oil & Gas, Power Plants, Refineries, Petrochemical, Boilers, High-Temperature Pipelines |
Mechanical properties of ASTM A182 F5 steel flanges include high tensile and yield strength. The material exhibits excellent elongation and reduction of area for ductility. Hardness values are controlled during manufacturing to ensure reliable performance. Flanges maintain dimensional stability under thermal cycling. Impact testing can be performed to confirm toughness in critical applications. The alloy steel withstands stress corrosion and high-pressure loads. These mechanical properties make F5 flanges ideal for demanding industrial pipelines. Engineers rely on these specifications for safe system design.
Chemical composition of ASTM A182 F5 flanges ensures high performance in extreme conditions. Key elements include carbon, manganese, phosphorus, sulfur, chromium, and molybdenum. Chromium provides oxidation resistance, while molybdenum enhances high-temperature strength. The balance of iron with minor alloying elements ensures toughness. Flanges are manufactured under strict quality control for chemical homogeneity. Proper composition prevents scaling, corrosion, and thermal degradation. F5 flanges maintain integrity in both steam and chemical processing applications. This ensures long-term reliability and safety.
ASTM A182 F5 flanges are available in standard sizes ranging from 1/2" to 48" NPS. They come in various pressure classes including 150, 300, 600, 900, 1500, and 2500 lbs. Dimensional standards comply with ASME B16.5 and B16.47 for seamless integration. Flanges feature precise bolt hole spacing and thickness for secure connections. Forged construction ensures high load-bearing capacity. Surface finishes include black, galvanized, and painted options for corrosion protection. These flanges accommodate multiple pipe schedules and material combinations. Proper dimensioning ensures leak-free operation.
| Chemical Composition – ASTM A182 F5 Steel Flanges | |
|---|---|
| Element | Composition (%) |
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.30 – 0.60 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.040 max |
| Silicon (Si) | 0.50 max |
| Chromium (Cr) | 0.80 – 1.25 |
| Molybdenum (Mo) | 0.44 – 0.65 |
| Vanadium (V) | 0.05 – 0.12 |
| Iron (Fe) | Balance |
| Mechanical Properties – ASTM A182 F5 Steel Flanges | |
|---|---|
| Property | Requirement |
| Tensile Strength | 485 – 620 MPa |
| Yield Strength (0.2% Offset) | 205 MPa min |
| Elongation | 20% min |
| Reduction of Area | 30% min |
| Hardness | 217 HB max |
| Impact Test | As per ASTM A182 / ASME SA182 (when specified) |
| Heat Treatment Condition | Annealed / Normalized & Tempered |
| Test Temperature | Room Temperature |
| Dimension Chart – ASTM A182 F5 Steel Flanges (ASME B16.5 / B16.47) | |||||
|---|---|---|---|---|---|
| Nominal Pipe Size (NPS) | Outside Diameter (OD) (mm) | Flange Thickness (mm) | Bolt Circle Diameter (BCD) (mm) | Number of Bolts | Pressure Class |
| 1/2" | 21.3 | 16 | 95 | 4 | 150 – 2500 lbs |
| 3/4" | 26.7 | 19 | 105 | 4 | 150 – 2500 lbs |
| 1" | 33.4 | 19 | 115 | 4 | 150 – 2500 lbs |
| 1 1/2" | 48.3 | 22 | 140 | 4 | 150 – 2500 lbs |
| 2" | 60.3 | 22 | 165 | 4 | 150 – 2500 lbs |
| 3" | 88.9 | 25 | 200 | 8 | 150 – 2500 lbs |
| 4" | 114.3 | 27 | 230 | 8 | 150 – 2500 lbs |
| 6" | 168.3 | 30 | 285 | 8 | 150 – 2500 lbs |
| 8" | 219.1 | 32 | 345 | 8 | 150 – 2500 lbs |
| 10" | 273.0 | 35 | 405 | 12 | 150 – 2500 lbs |
| 12" | 323.9 | 38 | 470 | 12 | 150 – 2500 lbs |
| 16" | 406.4 | 44 | 580 | 16 | 150 – 2500 lbs |
| 24" | 609.6 | 57 | 730 | 20 | 150 – 2500 lbs |
| Equivalent Grades – ASTM A182 F5 Steel Flanges | ||
|---|---|---|
| Standard | Equivalent Grade | Country / Specification |
| ASTM A182 | F5 | USA |
| ASME SA182 | F5 | USA (ASME) |
| EN 10222 | 12Cr1MoV | Europe |
| DIN | 13CrMo4-5 / 12Cr1MoV (Comparable) | Germany |
| BS | BS 1501 621 | United Kingdom |
| IS | IS 2062 Grade 2 / 12Cr1MoV (Comparable) | India |
| JIS | SCM435 / 12Cr1MoV (Comparable) | Japan |
| AFNOR | 15CDV6 / 12Cr1MoV (Comparable) | France |
ASTM A182 F5 Steel Flanges are high-performance alloy steel flanges made from chromium-molybdenum steel. They are designed for high-temperature, high-pressure, and corrosive service, commonly used in power plants, petrochemical, and chemical industries.
This standard covers various flanges, including weld neck, slip-on, socket weld, threaded, lap joint, blind, and reducing flanges. Each type is designed for specific applications, ensuring reliable connections in piping systems.
ASTM A182 F5 flanges are made of chromium-molybdenum steel containing carbon, manganese, phosphorus, sulfur, silicon, chromium, and molybdenum. This combination ensures high strength, heat resistance, and corrosion resistance under harsh operating conditions.
These flanges provide high tensile strength, yield strength, and excellent hardness. They can withstand high pressures and temperatures, making them suitable for critical piping applications where reliability is essential.
Yes, these flanges are suitable for welding. Proper welding procedures, preheating, and post-weld heat treatment are recommended to avoid cracking and maintain structural integrity in high-temperature applications.
ASTM A182 F5 flanges are available in pressure classes ranging from 150#, 300#, 600#, 900#, 1500#, to 2500#, in accordance with ASME B16.5 standards. Selection depends on the operating pressure, temperature, and system design.
These flanges are available in sizes from ½ inch to 48 inches in diameter. This wide size range makes them suitable for both small and large industrial piping systems.
Yes, the chromium-molybdenum composition provides good resistance to corrosion in certain environments. However, for highly corrosive media, additional protective coatings or alloy alternatives may be required.
These flanges undergo rigorous testing including hydrostatic testing, ultrasonic and radiographic inspection, hardness checks, and dimensional verification to ensure compliance with ASTM and ASME standards.
Industries such as oil & gas, petrochemical, chemical processing, power generation, and shipbuilding use ASTM A182 F5 flanges for high-pressure and high-temperature piping systems due to their strength, durability, and heat resistance.
