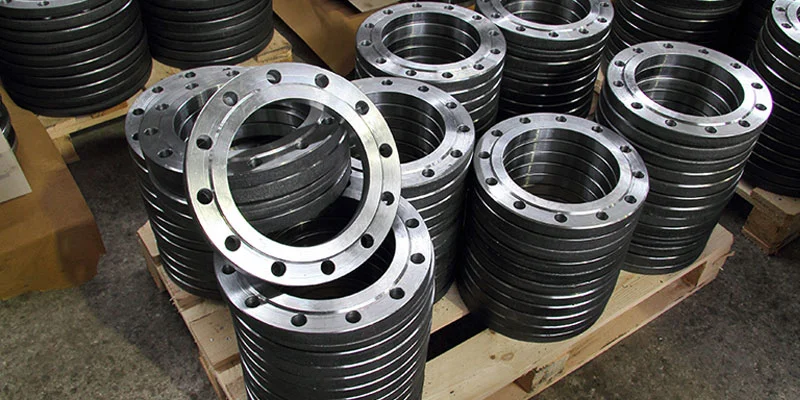

ASTM A182 F9 steel flanges are manufactured from chromium-molybdenum alloy steel and are designed for high-temperature and high-pressure service. These flanges are commonly used in power generation, oil and gas, petrochemical, and refinery industries. The addition of chromium improves corrosion resistance, while molybdenum enhances strength at elevated temperatures. ASTM A182 F9 flanges are typically supplied in forged form, ensuring superior mechanical integrity. They offer excellent resistance to creep and oxidation under extreme operating conditions. These flanges are ideal for steam lines, pressure vessels, and heat exchangers. Their robust metallurgical structure ensures long service life. Compliance with ASTM standards guarantees consistent quality and performance.
The chemical composition of ASTM A182 F9 steel flanges plays a critical role in their performance. They contain controlled amounts of chromium and molybdenum, which improve tensile strength and thermal stability. Carbon content is carefully maintained to balance hardness and weldability. The presence of manganese and silicon enhances deoxidation during steelmaking. Phosphorus and sulfur are kept to minimal levels to avoid brittleness. This balanced alloy composition allows F9 flanges to perform reliably in severe environments. The material is well-suited for both cyclic and continuous service. Consistent chemistry ensures predictable mechanical behavior.
ASTM A182 F9 flanges exhibit excellent mechanical properties that make them suitable for demanding applications. They offer high tensile strength and yield strength compared to carbon steel flanges. Their hardness levels are optimized to resist deformation under pressure. These flanges maintain structural stability even at elevated operating temperatures. Impact resistance is also improved through proper heat treatment processes. The mechanical strength of F9 flanges ensures leak-free joints in critical piping systems. They are designed to withstand thermal expansion and contraction. This reliability makes them a preferred choice in critical installations.
Heat treatment is an essential process in the manufacturing of ASTM A182 F9 steel flanges. Typically, these flanges are normalized and tempered to achieve the desired microstructure. Heat treatment enhances toughness and improves resistance to thermal fatigue. It also ensures uniform grain structure throughout the forged component. Proper heat treatment reduces internal stresses caused during forging. This process improves dimensional stability during service. The resulting flanges exhibit consistent performance across temperature ranges. Heat-treated F9 flanges comply strictly with ASTM specifications.
ASTM A182 F9 steel flanges are available in a wide range of sizes and pressure classes. They are commonly manufactured in ASME pressure ratings such as Class 150, 300, 600, 900, 1500, and 2500. These flanges are produced in sizes ranging from small bore to large diameter piping systems. Dimensional accuracy is maintained according to ASME B16.5 and ASME B16.47 standards. Custom sizes can also be manufactured upon request. This versatility allows easy integration into various piping layouts. Precision machining ensures proper gasket seating. Accurate dimensions contribute to safe and efficient operation.
Various flange types are available under ASTM A182 F9, catering to different piping requirements. Common types include weld neck, slip-on, socket weld, threaded, and blind flanges. Weld neck flanges are preferred for high-pressure and high-temperature services. Slip-on flanges offer easy installation and cost efficiency. Socket weld flanges are ideal for small-diameter, high-pressure pipelines. Threaded flanges are used where welding is not feasible. Blind flanges are used to terminate pipelines securely. Each type serves a specific functional purpose.
| Specification – ASTM A182 F9 Steel Flanges | |
|---|---|
| Standard | ASTM A182 / ASME SA182 |
| Grade | F9 |
| Material Type | Chromium Molybdenum Alloy Steel |
| Manufacturing Process | Forged |
| Product Forms | Weld Neck, Slip-On, Socket Weld, Threaded, Blind, Lap Joint |
| Size Range | ½″ to 48″ (Custom sizes available) |
| Pressure Class | ASME Class 150, 300, 600, 900, 1500, 2500 |
| Dimensional Standards | ASME B16.5, ASME B16.47 Series A & B |
| Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Heat Treatment | Normalized and Tempered |
| Testing | Chemical Analysis, Mechanical Testing, Hardness, NDT (if required) |
| Certification | Mill Test Certificate as per EN 10204 3.1 |
| Application | High Temperature & High Pressure Services |
ASTM A182 F9 flanges offer excellent resistance to high-temperature oxidation and corrosion. The chromium content forms a protective oxide layer on the surface. This layer reduces scaling and material loss at elevated temperatures. Molybdenum improves resistance to pitting and crevice corrosion. These properties make F9 flanges suitable for aggressive process environments. They perform well in steam, hydrocarbons, and chemical fluids. Their corrosion resistance reduces maintenance costs over time. This enhances overall system reliability.
Weldability is an important characteristic of ASTM A182 F9 steel flanges. Although they are alloy steel components, proper welding procedures ensure strong joints. Preheating is generally recommended to minimize thermal stresses. Post-weld heat treatment may be required depending on service conditions. Using compatible filler materials ensures metallurgical compatibility. Skilled welding practices prevent cracking and distortion. When welded correctly, F9 flanges provide excellent joint integrity. This makes them suitable for complex piping systems.
ASTM A182 F9 flanges are widely used in power plants for steam and boiler piping. They are also common in oil refineries handling high-temperature fluids. Petrochemical plants rely on these flanges for critical process lines. They are used in heat exchangers, pressure vessels, and reactors. Their ability to withstand extreme pressure makes them ideal for offshore platforms. Chemical processing units benefit from their corrosion resistance. F9 flanges are also used in fertilizer and pharmaceutical industries. Their versatility supports diverse industrial needs.
| Chemical Composition – ASTM A182 F9 Steel Flanges | |
|---|---|
| Element | Percentage (%) |
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.30 – 0.60 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.040 max |
| Silicon (Si) | 0.50 max |
| Chromium (Cr) | 8.00 – 10.00 |
| Molybdenum (Mo) | 0.90 – 1.10 |
| Nickel (Ni) | 0.40 max |
| Vanadium (V) | 0.20 – 0.30 |
| Iron (Fe) | Balance |
| Mechanical Properties – ASTM A182 F9 Steel Flanges | |
|---|---|
| Tensile Strength | 585 MPa min (85 ksi min) |
| Yield Strength (0.2% Offset) | 415 MPa min (60 ksi min) |
| Elongation | 20% min |
| Reduction of Area | 45% min |
| Hardness | 217 HB max |
| Impact Test | As per ASTM A182 (if specified) |
| Heat Treatment Condition | Normalized and Tempered |
| Testing Temperature | Room Temperature |
| Dimension Chart – ASTM A182 F9 Steel Flanges (ASME B16.5) | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | Bolt Circle Diameter (BCD) | Flange Thickness (T) | Raised Face Height (RF) | Number of Bolt Holes | Bolt Hole Diameter | Pressure Class |
| 1/2" | 89 mm | 60 mm | 11 mm | 1.6 mm | 4 | 15 mm | 150 |
| 1" | 108 mm | 79 mm | 13 mm | 1.6 mm | 4 | 16 mm | 150 |
| 2" | 152 mm | 121 mm | 16 mm | 1.6 mm | 4 | 19 mm | 150 |
| 3" | 191 mm | 152 mm | 19 mm | 1.6 mm | 4 | 19 mm | 150 |
| 4" | 229 mm | 190 mm | 24 mm | 1.6 mm | 8 | 19 mm | 150 |
| 6" | 279 mm | 241 mm | 25 mm | 1.6 mm | 8 | 22 mm | 150 |
| 8" | 343 mm | 298 mm | 28 mm | 1.6 mm | 8 | 22 mm | 150 |
| 10" | 406 mm | 362 mm | 30 mm | 1.6 mm | 12 | 25 mm | 150 |
| Equivalent Grades – ASTM A182 F9 Steel Flanges | |
|---|---|
| Standard | Equivalent Grade |
| ASTM / ASME | ASTM A182 F9 / ASME SA182 F9 |
| UNS | K90941 |
| EN (European) | EN 10222-2 10CrMo9-10 |
| DIN | DIN 1.7380 |
| BS | BS 1503-621 B |
| JIS | JIS G3204 SCMV3 |
| AFNOR | NF A32-070 10CD9-10 |
| GB (China) | GB 3077 10CrMo9-10 |
ASTM A182 F9 Steel Flanges are high-strength chromium-molybdenum alloy steel flanges designed for high-pressure and high-temperature service. They are commonly used in power plants, chemical, petrochemical, and oil & gas industries due to their superior mechanical and heat-resistant properties.
This standard includes weld neck, slip-on, socket weld, threaded, lap joint, blind, and reducing flanges. Each type is designed for specific piping configurations, ensuring proper connection, pressure handling, and flow requirements.
ASTM A182 F9 flanges are made from chromium-molybdenum steel containing carbon, manganese, phosphorus, sulfur, silicon, chromium, and molybdenum. This composition provides high strength, excellent heat resistance, and moderate corrosion resistance for industrial applications.
These flanges have high tensile and yield strength, good hardness, and toughness. They are designed to withstand high-pressure and high-temperature conditions, making them suitable for critical applications in refineries, power plants, and chemical processing plants.
Yes, ASTM A182 F9 flanges are suitable for welding. Proper welding procedures, including preheating and post-weld heat treatment, are recommended to prevent cracking and ensure long-term durability in high-temperature service.
ASTM A182 F9 flanges are available in pressure classes including 150#, 300#, 600#, 900#, 1500#, and 2500#, as per ASME B16.5 standards. Pressure class selection depends on the operating pressure and temperature requirements of the piping system.
These flanges are manufactured in sizes ranging from ½ inch to 48 inches, making them suitable for both small and large piping systems in industrial and commercial applications.
ASTM A182 F9 flanges offer moderate corrosion resistance due to their chromium-molybdenum composition. For highly corrosive conditions, protective coatings or alloy alternatives may be necessary to prevent premature deterioration.
These flanges undergo hydrostatic testing, dimensional inspections, radiographic and ultrasonic testing, and hardness checks to ensure compliance with ASTM and ASME standards. This guarantees safety and reliability under high-pressure service.
Industries such as power generation, oil & gas, petrochemical, chemical processing, and shipbuilding use ASTM A182 F9 flanges for high-pressure and high-temperature piping systems due to their strength, heat resistance, and reliability in critical applications.
