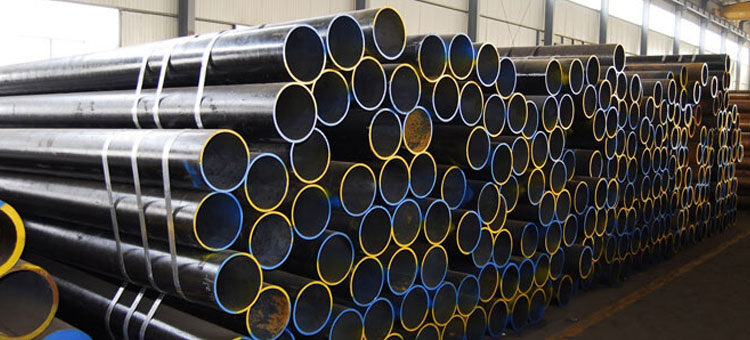

ASTM A213 T5 Tubes are high-temperature seamless alloy steel tubes manufactured in accordance with ASTM A213 / ASME SA213 standards. These tubes are alloyed with chromium and molybdenum, which provide excellent resistance to oxidation, corrosion, and creep at elevated temperatures. ASTM A213 T5 Tubes are widely used in boilers, superheaters, heat exchangers, and high-temperature pressure parts in power plants and industrial processing units..
Metal Tubular Products is a worldwide stockist and supplier of ASTM A213 T5 Tubes, offering seamless tubes in a wide range of outside diameters, wall thicknesses, and lengths. With a strong global supply chain and ready stock availability, the company supports both emergency replacement requirements and large-scale industrial projects across international markets..
ASTM A213 T5 Tubes supplied by Metal Tubular Products exhibit reliable mechanical properties and long-term performance under high-temperature and high-pressure conditions. The chromium content improves oxidation and corrosion resistance, while molybdenum enhances creep strength and tensile properties. These characteristics make T5 tubes suitable for continuous service in severe thermal environments..
All ASTM A213 T5 Tubes are manufactured using advanced seamless tube-making processes to ensure uniform wall thickness, dimensional accuracy, and smooth internal surfaces. Tubes are supplied in the normalized and tempered condition, which ensures structural stability and consistent performance during prolonged high-temperature exposure.
| Standard | ASTM A213 / ASME SA213 | ||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade | T5 | ||||||||||||||||||||||||||||||||||
| Material Type | Alloy Steel (Chromium–Molybdenum) | ||||||||||||||||||||||||||||||||||
| Product Form | Seamless Tubes | ||||||||||||||||||||||||||||||||||
| Element | Composition % |
|---|---|
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.30 – 0.60 |
| Silicon (Si) | 0.50 max |
| Chromium (Cr) | 4.00 – 6.00 |
| Molybdenum (Mo) | 0.45 – 0.65 |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 415 MPa |
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 30% |
| Outside Diameter | 1/8” OD to 5” OD |
|---|---|
| Wall Thickness | 0.5 mm to 12 mm |
| Length | Up to 18 meters / Cut Length |
| Standard | Equivalent Grade |
|---|---|
| ASTM / ASME | ASTM A182 F5 (Forgings) |
| EN | EN 10216-2 X12CrMo5 |
| DIN | DIN 17175 12CrMo195 |
| BS | BS 3604 HFS 5 |
ASTM A213 T5 Tubes are used in high-temperature and high-pressure applications such as boilers, superheaters, reheaters, and heat exchangers in power plants, refineries, and petrochemical industries.
The “T5” designation refers to a chromium-molybdenum alloy steel tube containing approximately 4–6% chromium and 0.45–0.65% molybdenum, designed for elevated temperature service.
Yes, ASTM A213 T5 Tubes are manufactured and supplied in seamless form only, ensuring uniform wall thickness and superior performance in critical applications.
ASTM A213 T5 Tubes are supplied in annealed or normalized and tempered condition to achieve the required mechanical properties and structural stability.
Metal Tubular Products is a worldwide stockist and supplier of ASTM A213 T5 Tubes, offering a wide size range, reliable delivery, and compliance with international quality standards.
