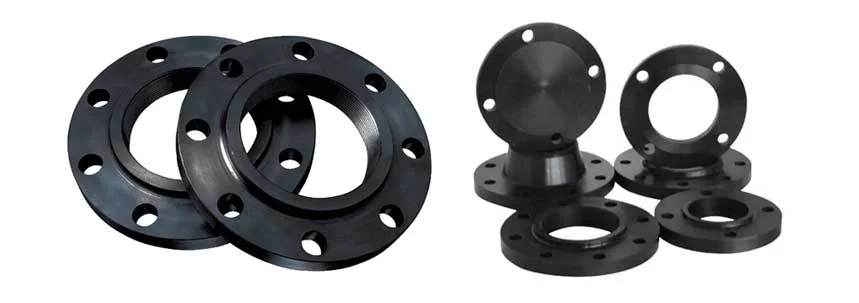

ASTM A350 LF2 Carbon Steel Flanges are specially designed for low-temperature service in pressure piping and vessel applications. These flanges are manufactured from forged carbon steel to ensure high structural integrity. LF2 grade is known for its excellent notch toughness at sub-zero temperatures. The material maintains strength and ductility in cold environments. This makes it suitable for critical cryogenic services. ASTM A350 LF2 flanges comply with stringent quality requirements. They are widely accepted across global industries. Reliability is their key advantage.
The LF2 grade under ASTM A350 specification is primarily used where impact resistance is essential. These flanges undergo mandatory impact testing to ensure performance at low temperatures. Controlled chemical composition enhances toughness and consistency. Forging improves grain flow and mechanical strength. This results in improved resistance to brittle fracture. LF2 flanges are trusted in demanding conditions. Their performance supports safety-critical operations. Engineers rely on them for low-temperature systems.
ASTM A350 LF2 Carbon Steel Flanges are extensively used in the oil and gas industry. They are ideal for pipelines, valves, and pressure vessels exposed to cold climates. These flanges perform well in offshore and onshore installations. Their impact resistance ensures safe operation during temperature fluctuations. LF2 flanges help prevent catastrophic failures. They are suitable for sour and non-sour services. Industry standards often specify LF2 material. Long service life is ensured.
In LNG and cryogenic applications, ASTM A350 LF2 flanges play a critical role. They maintain mechanical stability at temperatures as low as –46°C. The material resists cracking caused by thermal shock. This ensures leak-free flange joints. LF2 flanges support safe transportation and storage of liquefied gases. Their reliability improves system efficiency. Cryogenic industries prefer LF2 for safety. Performance consistency is well proven.
ASTM A350 LF2 flanges are supplied in normalized, normalized and tempered, or quenched and tempered conditions. Heat treatment enhances toughness and strength. Proper treatment ensures uniform mechanical properties. It also improves resistance to stress corrosion cracking. Manufacturers follow strict heat-treatment cycles. This guarantees compliance with ASTM standards. Heat-treated LF2 flanges perform reliably. Quality control is critical at this stage.
These carbon steel flanges are available in various types including weld neck, slip-on, blind, socket weld, and threaded. Weld neck flanges are preferred for high-stress, low-temperature applications. Blind flanges are used to isolate piping systems. Slip-on flanges provide ease of installation. ASTM A350 LF2 material suits all standard flange designs. Versatility is a major benefit. Engineers can select based on application needs.
| Specification – ASTM A350 LF2 Carbon Steel Flanges | |
|---|---|
| Standard | ASTM A350 / ASME SA350 |
| Grade | LF2 |
| Material Type | Low Temperature Carbon Steel |
| Manufacturing Process | Forged |
| Heat Treatment | Normalized, Normalized & Tempered, or Quenched & Tempered |
| Impact Test Temperature | -46°C (mandatory) |
| Product Forms | Weld Neck, Slip-On, Blind, Socket Weld, Threaded |
| Pressure Class | ASME Class 150, 300, 600, 900, 1500, 2500 |
| Dimensional Standards | ASME B16.5 / ASME B16.47 |
| Testing | Chemical, Mechanical, Impact, NDT (if specified) |
| Application | Oil & Gas, LNG, Cryogenic Service, Petrochemical, Refineries |
ASTM A350 LF2 Carbon Steel Flanges conform to ASME B16.5 and ASME B16.47 dimensional standards. They are available in pressure classes ranging from 150 to 2500. Accurate machining ensures proper alignment and gasket seating. This reduces the risk of leakage. Dimensional precision supports easy installation. Standardization allows global compatibility. These flanges integrate seamlessly into piping systems. Compliance ensures reliability.
The mechanical properties of ASTM A350 LF2 flanges include good tensile strength and yield strength. These properties are retained even at low operating temperatures. High elongation improves ductility. Impact toughness is a defining characteristic. These properties enhance resistance to brittle failure. LF2 flanges perform under cyclic loading. Mechanical stability improves system safety. Engineers value their predictable behavior.
ASTM A350 LF2 Carbon Steel Flanges offer good weldability when proper procedures are followed. Preheating may be applied depending on thickness. Controlled welding prevents cracking in low-temperature service. Post-weld heat treatment may be specified for stress relief. Proper welding ensures joint integrity. Skilled fabrication enhances service life. Welding standards must be strictly followed. This ensures safe and durable joints.
| Chemical Composition – ASTM A350 LF2 Carbon Steel Flanges | |
|---|---|
| Element | Composition (%) |
| Carbon (C) | 0.30 max |
| Manganese (Mn) | 0.60 – 1.35 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.040 max |
| Silicon (Si) | 0.15 – 0.35 |
| Nickel (Ni) | 0.40 max |
| Copper (Cu) | 0.40 max |
| Chromium (Cr) | 0.30 max |
| Molybdenum (Mo) | 0.12 max |
| Mechanical Properties – ASTM A350 LF2 Carbon Steel Flanges | |
|---|---|
| Tensile Strength | 485 MPa min (70 ksi min) |
| Yield Strength (0.2% Offset) | 250 MPa min (36 ksi min) |
| Elongation | 22% min |
| Reduction of Area | 30% min |
| Hardness | 197 HB max |
| Impact Test | Charpy V-Notch tested at -46°C |
| Minimum Impact Energy | 27 Joules (average of three specimens) |
| Heat Treatment Condition | Normalized / Normalized & Tempered / Quenched & Tempered |
| Testing Temperature | Room Temperature (except impact test) |
| Dimension Chart – ASTM A350 LF2 Carbon Steel Flanges (ASME B16.5) | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | Bolt Circle Diameter (BCD) | Flange Thickness (T) | Raised Face Height (RF) | Number of Bolt Holes | Bolt Hole Diameter | Pressure Class |
| 1/2" | 89 mm | 60 mm | 11 mm | 1.6 mm | 4 | 15 mm | 150 |
| 1" | 108 mm | 79 mm | 13 mm | 1.6 mm | 4 | 16 mm | 150 |
| 2" | 152 mm | 121 mm | 16 mm | 1.6 mm | 4 | 19 mm | 150 |
| 3" | 191 mm | 152 mm | 19 mm | 1.6 mm | 4 | 19 mm | 150 |
| 4" | 229 mm | 190 mm | 24 mm | 1.6 mm | 8 | 19 mm | 150 |
| 6" | 279 mm | 241 mm | 25 mm | 1.6 mm | 8 | 22 mm | 150 |
| 8" | 343 mm | 298 mm | 28 mm | 1.6 mm | 8 | 22 mm | 150 |
| 10" | 406 mm | 362 mm | 30 mm | 1.6 mm | 12 | 25 mm | 150 |
| Equivalent Grades – ASTM A350 LF2 Carbon Steel Flanges | |
|---|---|
| Standard | Equivalent Grade |
| ASTM / ASME | ASTM A350 LF2 / ASME SA350 LF2 |
| EN (European Standard) | EN 10222-2 P355NL1 / EN 10028-3 P355NL1 |
| DIN | DIN EN 10222-2 P355NL1 |
| BS | BS EN 10222-2 P355NL1 |
| JIS | JIS G4051 S25C / JIS G3106 SM400 (Closest Equivalent) |
| ISO | ISO 9327 P355NL1 |
| AFNOR | NF A 36-204 A42NL1 |
| GB (China) | GB/T 713 Q345D (Approximate Equivalent) |
ASTM A350 LF2 Carbon Steel Flanges are low-temperature carbon steel flanges specifically designed for applications where impact toughness is critical at low temperatures. They are widely used in oil & gas, chemical, and power industries for piping systems operating under sub-zero conditions.
This standard includes weld neck, slip-on, socket weld, threaded, lap joint, blind, and reducing flanges. These flanges are designed to meet various piping system requirements while ensuring safe and reliable operation at low temperatures.
ASTM A350 LF2 flanges are made of carbon steel containing carbon, manganese, phosphorus, sulfur, and silicon. The chemical composition ensures excellent toughness, weldability, and strength at low temperatures for industrial piping systems.
These flanges provide high tensile and yield strength, good elongation, and impact toughness at low temperatures. They are suitable for cold-temperature applications, ensuring durability and safety in critical piping networks.
Yes, these flanges are designed for welding. They exhibit excellent weldability with carbon steel pipes, and proper welding procedures maintain impact toughness and structural integrity under low-temperature service.
ASTM A350 LF2 flanges are available in pressure classes including 150#, 300#, 600#, 900#, 1500#, and 2500#, as per ASME B16.5 standards. Selection of pressure class depends on the operating conditions and piping system design.
These flanges are available in nominal pipe sizes from ½ inch to 48 inches, suitable for both small-diameter and large industrial pipelines, making them versatile for low-temperature and critical piping applications.
LF2 carbon steel flanges provide moderate corrosion resistance. For highly corrosive environments, protective coatings, galvanizing, or using alternative alloys may be necessary to ensure long service life.
These flanges undergo hydrostatic testing, dimensional inspections, and impact testing at low temperatures to ensure compliance with ASTM standards. This ensures reliable performance in cold-temperature industrial applications.
Industries such as oil & gas, chemical processing, power generation, and cryogenic systems commonly use ASTM A350 LF2 flanges due to their excellent low-temperature toughness, strength, and reliability in critical piping applications.
