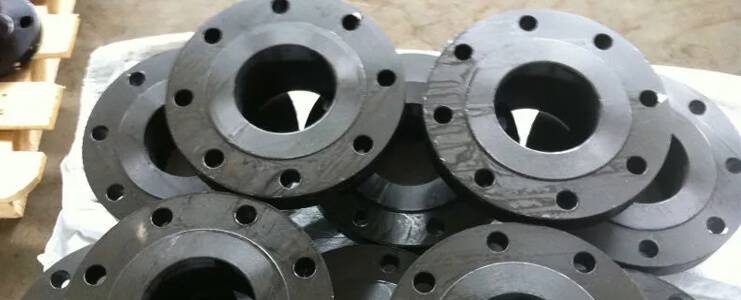

ASTM A694 F42/F46/F52/F56/F60/F65/F70 Carbon Steel Flanges are high-strength flanges specifically designed to handle high-pressure applications in oil, gas, petrochemical, and pipeline industries. They are widely used in piping systems where enhanced mechanical properties are required to withstand high stress, temperature variations, and corrosive environments. These flanges are commonly fabricated as weld neck, slip-on, blind, and socket weld flanges to meet specific industrial needs.Mechanical properties of these flanges, such as yield strength, tensile strength, and elongation, are tested to meet stringent quality standards. F42 flanges have a minimum yield strength of 42 ksi, while F70 flanges reach up to 70 ksi, allowing flexibility in engineering design. Hardness and impact testing are also performed to ensure the flanges can endure rigorous operational environments.
Manufactured according to ASTM A694 standards, these flanges are forged from carbon steel to provide exceptional strength and durability. Each grade, from F42 to F70, corresponds to a minimum yield strength requirement, allowing engineers to select the most suitable flange for their high-pressure systems. These flanges are suitable for both low and elevated temperature operations while maintaining their mechanical integrity. The chemical composition of ASTM A694 flanges includes controlled levels of carbon, manganese, phosphorus, sulfur, and other alloying elements to ensure toughness and weldability. Higher grades like F65 and F70 provide superior tensile strength and resistance to deformation under extreme pressure conditions, making them ideal for pipeline transportation and pressure vessel systems.
Weldability is a key feature of ASTM A694 carbon steel flanges. The flanges can be easily welded using conventional techniques without requiring preheating for lower grades, though higher grades may require specific welding procedures. Proper welding ensures leak-free joints and long-term reliability in high-pressure piping systems. Heat treatment is often applied to ASTM A694 flanges to improve their mechanical properties and relieve internal stresses caused during forging. Normalizing and quenching processes enhance toughness, while controlled tempering ensures a uniform microstructure. This makes the flanges more resistant to cracking and fatigue during service.
Dimensional standards for ASTM A694 flanges are maintained according to ASME B16.5 (for sizes up to 24 inches) and ASME B16.47 (for larger sizes). Standard dimensions include flange diameter, thickness, bolt hole configuration, and raised face or flat face designs. This ensures compatibility with piping systems and easy installation. Corrosion resistance of these carbon steel flanges is moderate in nature, but they can be coated or painted for additional protection in aggressive environments. They can also be used with anti-corrosion linings or in conjunction with stainless steel piping components where enhanced resistance is required.
Applications of ASTM A694 F42/F46/F52/F56/F60/F65/F70 flanges span across oil and gas pipelines, refineries, chemical plants, and power generation facilities. They are ideal for high-pressure transport of crude oil, natural gas, and other industrial fluids where standard carbon steel flanges might fail. Installation of these flanges requires proper torqueing of bolts, gasket selection, and alignment to ensure leak-free performance. Bolt circle dimensions and flange thicknesses must comply with standards to prevent mechanical failures or stress concentrations during operation.
Testing and inspection play a critical role in ensuring the quality of ASTM A694 flanges. Non-destructive testing (NDT), including ultrasonic and magnetic particle inspections, are performed to detect surface and internal defects. Hydrostatic and pneumatic pressure tests are also conducted for critical applications. Grades comparison highlights the progressive increase in yield and tensile strength from F42 through F70. Engineers can select the appropriate grade based on design pressure, operating temperature, and safety factors. Higher grades like F65 and F70 are preferred in ultra-high-pressure pipelines.
| Grade | Minimum Yield Strength (ksi) | Minimum Tensile Strength (ksi) | Elongation (%) | Hardness (HB) | Application |
|---|---|---|---|---|---|
| F42 | 42 | 60 | 20 | 187 | Low-pressure pipelines, oil & gas, general industrial use |
| F46 | 46 | 65 | 20 | 197 | Medium-pressure pipelines, chemical plants |
| F52 | 52 | 70 | 18 | 207 | High-pressure oil & gas pipelines |
| F56 | 56 | 75 | 18 | 217 | High-pressure transmission lines, refineries |
| F60 | 60 | 80 | 16 | 227 | Critical pipelines and high-pressure service |
| F65 | 65 | 85 | 16 | 237 | Ultra high-pressure pipelines, industrial applications |
| F70 | 70 | 90 | 15 | 247 | Extreme high-pressure pipelines, oil & gas transmission |
Maintenance of ASTM A694 flanges involves periodic inspection for corrosion, mechanical wear, and joint integrity. Proper maintenance ensures longevity and prevents unexpected downtime in industrial systems, especially in pipelines carrying hazardous fluids. Compatibility with gaskets, bolts, and mating flanges is crucial for operational safety. ASTM A694 flanges are designed to fit with standard carbon steel or alloy flanges, maintaining the continuity of high-pressure piping systems without compromising performance.
Advantages of using ASTM A694 carbon steel flanges include high strength-to-weight ratio, resistance to high-pressure deformation, excellent weldability, and reliability in critical applications. Their versatility makes them a preferred choice in industries demanding durability under extreme conditions. Conclusion: ASTM A694 F42/F46/F52/F56/F60/F65/F70 Carbon Steel Flanges provide a reliable and robust solution for high-pressure piping systems. From chemical plants to oil & gas pipelines, these flanges ensure safety, performance, and longevity. Selecting the correct grade ensures optimal mechanical performance, making them indispensable in industrial applications.
| Grade | C (Carbon) | Mn (Manganese) | P (Phosphorus) | S (Sulfur) | Si (Silicon) | Cu (Copper) | Ni (Nickel) | Cr (Chromium) | Mo (Molybdenum) |
|---|---|---|---|---|---|---|---|---|---|
| F42 | 0.18-0.26 | 1.00-1.50 | ≤0.030 | ≤0.030 | ≤0.15 | ≤0.25 | ≤0.25 | 0.15-0.30 | 0.05-0.10 |
| F46 | 0.18-0.26 | 1.00-1.50 | ≤0.030 | ≤0.030 | ≤0.15 | ≤0.25 | ≤0.25 | 0.20-0.35 | 0.06-0.12 |
| F52 | 0.18-0.26 | 1.00-1.50 | ≤0.030 | ≤0.030 | ≤0.15 | ≤0.25 | ≤0.25 | 0.25-0.40 | 0.07-0.15 |
| F56 | 0.18-0.26 | 1.00-1.50 | ≤0.030 | ≤0.030 | ≤0.15 | ≤0.25 | ≤0.25 | 0.30-0.45 | 0.08-0.16 |
| F60 | 0.18-0.26 | 1.00-1.50 | ≤0.030 | ≤0.030 | ≤0.15 | ≤0.25 | ≤0.25 | 0.35-0.50 | 0.09-0.18 |
| F65 | 0.18-0.26 | 1.00-1.50 | ≤0.030 | ≤0.030 | ≤0.15 | ≤0.25 | ≤0.25 | 0.40-0.55 | 0.10-0.20 |
| F70 | 0.18-0.26 | 1.00-1.50 | ≤0.030 | ≤0.030 | ≤0.15 | ≤0.25 | ≤0.25 | 0.45-0.60 | 0.12-0.22 |
| Grade | Minimum Yield Strength (ksi / MPa) | Minimum Tensile Strength (ksi / MPa) | Elongation (%) | Hardness (HB) | Impact Test (Charpy V-notch, ft-lb / J) |
|---|---|---|---|---|---|
| F42 | 42 / 290 | 60 / 415 | 20 | 187 | ≥20 / 27 |
| F46 | 46 / 315 | 65 / 450 | 20 | 197 | ≥20 / 27 |
| F52 | 52 / 360 | 70 / 485 | 18 | 207 | ≥18 / 24 |
| F56 | 56 / 385 | 75 / 515 | 18 | 217 | ≥18 / 24 |
| F60 | 60 / 415 | 80 / 550 | 16 | 227 | ≥16 / 22 |
| F65 | 65 / 450 | 85 / 585 | 16 | 237 | ≥16 / 22 |
| F70 | 70 / 485 | 90 / 620 | 15 | 247 | ≥15 / 20 |
| Nominal Size (inches) | Outside Diameter (OD, mm) | Bolt Circle Diameter (BCD, mm) | No. of Bolts | Bolt Size (mm) | Flange Thickness (mm) | Raised Face / Flat Face (mm) |
|---|---|---|---|---|---|---|
| 2" | 60.3 | 95 | 4 | 18 | 16 | 2 |
| 4" | 114.3 | 165 | 8 | 18 | 19 | 2 |
| 6" | 168.3 | 190 | 8 | 20 | 22 | 2 |
| 8" | 219.1 | 250 | 8 | 22 | 24 | 2 |
| 10" | 273.0 | 305 | 12 | 22 | 27 | 2 |
| 12" | 323.9 | 355 | 12 | 24 | 30 | 2 |
| 16" | 406.4 | 450 | 16 | 26 | 35 | 2 |
| 20" | 508.0 | 565 | 20 | 30 | 40 | 2 |
| 24" | 609.6 | 670 | 20 | 30 | 45 | 2 |
| ASTM A694 Grade | UNS No. | EN / DIN | JIS | BS / Other |
|---|---|---|---|---|
| F42 | K04200 | 1.0420 | ST42 | BS 1504-42 |
| F46 | K04600 | 1.0460 | ST46 | BS 1504-46 |
| F52 | K05200 | 1.0520 | ST52 | BS 1504-52 |
| F56 | K05600 | 1.0560 | ST56 | BS 1504-56 |
| F60 | K06000 | 1.0600 | ST60 | BS 1504-60 |
| F65 | K06500 | 1.0650 | ST65 | BS 1504-65 |
| F70 | K07000 | 1.0700 | ST70 | BS 1504-70 |
ASTM A694 Carbon Steel Flanges are high-strength, low-alloy steel flanges designed for high-pressure piping systems in the oil & gas, petrochemical, and power industries. The different grades (F42, F46, F52, F56, F60, F65, F70) indicate increasing minimum yield strength suitable for severe service conditions.
This specification includes weld neck, slip-on, blind, socket weld, threaded, and reducing flanges. They are designed to handle high-pressure and high-temperature service in pipelines transporting oil, gas, and other industrial fluids.
ASTM A694 flanges are made from carbon steel with alloying elements including carbon, manganese, phosphorus, sulfur, silicon, and in some grades small amounts of chromium or molybdenum. This ensures high strength, toughness, and resistance to cracking under high-pressure conditions.
These flanges provide high tensile and yield strength according to grade (F42–F70), good elongation, and impact toughness. They are suitable for severe service in high-pressure pipelines, providing durability and safety under extreme operating conditions.
Yes, ASTM A694 flanges are designed for welding. Proper welding procedures, including preheat and post-weld heat treatment where required, ensure structural integrity and maintain mechanical properties for high-pressure service.
These flanges are manufactured to meet ASME B16.5 pressure classes such as 150#, 300#, 400#, 600#, 900#, 1500#, and 2500#, depending on the piping system requirements and the specific grade of ASTM A694 carbon steel.
ASTM A694 flanges are available in nominal pipe sizes from ½ inch to 48 inches, accommodating both small-diameter and large-diameter industrial pipelines for oil & gas, petrochemical, and power industries.
These flanges offer moderate corrosion resistance. For highly corrosive environments, additional protective coatings or use of alloyed steels may be recommended to ensure durability and long-term service life.
ASTM A694 flanges undergo hydrostatic testing, dimensional inspection, and visual or non-destructive testing (NDT) such as radiography or ultrasonic testing. These tests ensure compliance with ASTM and ASME standards and guarantee safe operation in high-pressure systems.
Industries such as oil & gas, petrochemical, chemical processing, and power generation extensively use ASTM A694 flanges for high-pressure pipelines due to their superior strength, durability, and reliability in severe service conditions.
